Wireless components

Based on its multidimensional operations Skytop provides superior wireless solutions, such as wireless components. With the professional R&D teams, based in Hong Kong, offer prompt technical support to customers.

Catching up the coming big waves of IoT and wireless applications, Skytop has integrated its engineering resources for more wireless modules developments (e.g. Wi-Fi, Bluetooth/BLE, GPS, GLONASS, combo modules).

On hardware aspects, we design and manufacture wireless solutions from chips to modules. Meanwhile, we develop App, firewall and remote control systems to cater software and firmware customer groups.

Skytop aims to meet higher requirements on industrial control, smart home, automotive electronics and medical care applications. We provide multi-functional approach to enhance your life productivity.

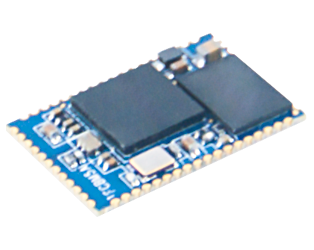

Wi-Fi-modules


IEEE802.11a/b/g/n and 802.11ac draft 2.0 compliant Compatible with Bluetooth v2.1 and v3.0, support Bluetooth 4.0 Low Energy(BLE) Data rates: 173.3Mbps using 20MHz bandwidth, 400Mbps using 40MHz bandwidth, and 866.7Mbps using 80MHz bandwidth 25x24

  • IEEE802.11a/b/g/n and 802.11ac draft 2.0 compliant
  • Compatible with Bluetooth v2.1 and v3.0, support Bluetooth 4.0 Low Energy(BLE)
  • Data rates: 173.3Mbps using 20MHz bandwidth, 400Mbps using 40MHz bandwidth, and 866.7Mbps using 80MHz bandwidth
  • 25x24

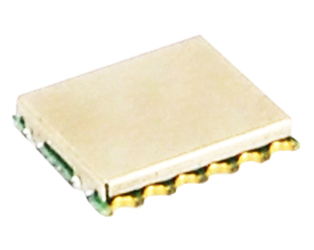

IoT-WLAN-modules


IoT-WLAN-modules is a highly integrated single-chip low power WLAN modules. It combines an ARM-CM3 MCU, WLAN MAC, a 1T1R capable WLAN baseband, and RF in a single chip. It also provides a bunch of configurable GPIOs which are configured as digital peripherals.

Description

A highly integrated single-chip low power WLAN module. It combines an ARM-CM3 MCU, WLAN MAC, a 1T1R capable WLAN baseband, and RF in a single chip. It also provides a bunch of configurable GPIOs which are configured as digital peripherals for different applications and control usage.

The module integrates internal memories for complete WiFi protocol functions. The embedded memory configuration also provides simple application development.

Features

  • Operates in 2.4 GHz frequency bands
  • 1T1R MIMO technology improves effective throughput and range over existing 802.11 b/g products
  • Data rates: 1T1R up to 150Mbps.
  • 802.11e-compatible bursting and I standards
  • BPSK, QPSK, 16 QAM, 64 QAM modulation schemes
  • SPI,UART,GPIO,I2C,PWM
  • WEP64/128, TKIP, and AES, WPA, WPA2, WAPI hardware encryption schemes
  • Small footprint: 22.25×19.0×2.2 mm
  • RoHS compliance

Application

  • Smart home automation
  • Internet of things

BLE Bluetooth Modules


The module from Skytop is a complete Bluetooth® solution. It is built on CSR BC05 MultiMedia External Core and 8Mbit/16Mbit/32Mbit Flash memory.I t’s a short range, compact and cost effective module. Be able to be embedded into your any electronics devices, which need Bluetooth® connection, such as PND, Car Audio, Home Audio, Car kit, Handsfree applications.


GPS/GNSS/Beidou/GlonassGalileo


GLONASS/GPS-module is a high performance, low power consumption, small size, and very easy integrated GPS engine board, based on the latest SiRFstarIV technology.

Main Features:

  • Based on the latest SiRFstarIV
  • High sensitivity navigation engine (PVT) tracks as low as -163dBm
  • Cold Start 35s average
  • 48 track verification channels
  • Active Jammer Remover: Removes in-band jammers up to 80 dB-Hz.
  • Tracks up to 8 CW jammers
  • GPS data updated through UART
  • Small active size: 9.6(W) x 8.0(D) x 1.6(H) mm
