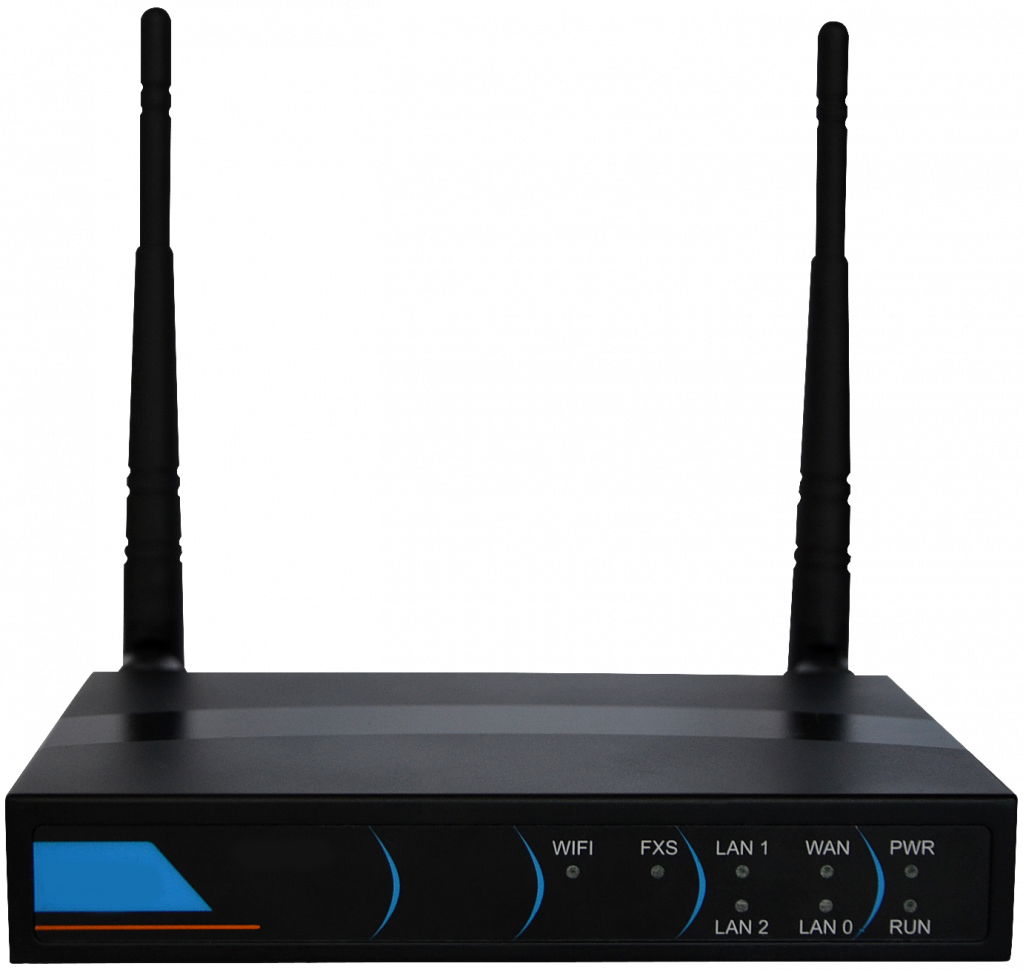

Gibrid Gateways

Gibrid Gateways are multi-functional gateways, which integrates voice service and data service. It provides three voice interfaces (including GSM, FXS and FXO), offering seamless connectivity to VoIP Network, PLMN and PSTN. Based on SIP, it not only can interacts with VoIP network, but also supports four types of GSM frequency ranges, thus meeting the worldwide requirements about the mobile network.

Gibrid Gateways supports Wi-Fi and has high-speed data-handling capacity, allowing users to enjoy high-speed internet surfing through Wi-Fi or the LAN port. With VPN transparent transfer function, UC100 is ideally suitable for personal use. Meanwhile, it is perfect for small and micro enterprises, providing high-speed internet access, good voice service and messaging service.

Key features
  • FXS,FXO,GSM and Data Services in a single platform
  • Any to Any Network Communication
  • Flexible Dial Plan
  • Time, Number, Service provider Routing
  • Powerful Routing strateg
  • Local Extension Exchange
  • FXO Adaptive Impedance matching
  • Custom IVR
  • Local CDR
  • SMS Send and Receive
  • NAT Router
  • Wi-Fi AP
  • G.711A/U law, G.723.1, G.729A/B,G.726
  • AMR/GSM FR/HR/EFR/CDMA EVRC
  • QCELP
  • Silence Suppression & Detection
  • Comfort Noise Generation(CNG)
  • Voice Activity Detection(VAD)
  • Echo Cancellation(G.168)
  • Adaptive (Dynamic) Jitter Buffer
  • Call Progress Tone Generation
  • Programmable Gain Control
  • Hook Flash
  • DTMF mode: Signal/RFC2833
  • FXO Gain Auto Detect
  • T.38/Pass-Through FA

    Call & Routing

  • Ring Groups
  • Call Routing Group
  • Caller/Called Number Manipulation
  • Time based Call Routing
  • Number based Call Routing
  • Service provider based Call Routing
  • Dial Plan
  • Failover Call Routing
  • Custom IVR
  • Automated attendant

    SIP Protocol

  • SIP V2.0 RFC3261
  • SDP RFC2327
  • Session Timer RFC4028
  • RTP/RTCP RFC3551
  • SIP Extensions
  • SIP Registration
  • SIP Trunk
  • SIP Master/Slave Server
  • Configurable SIP Release Code
  • DNS SRV/A Query
  • Outbound Proxy
  • NAT Traversal
  • Dynamic NAT, Static NAT, STUN

    Protocol

  • IP v4/v6, UDP/TCP
  • Static IP/PPPoE/DHCP
  • FTP/TFTP/ARP/RARP
  • HTTPS/SSH/Telnet/STUN
  • PRI/BRI/R2
  • SIP/IMS/H323
  • NTP
  • VPN(Pass-through)

    IPPBX Function List

  • Call Forward on Busy
  • Call Forward on No Answer
  • Call Forward Unconditional
  • Call Waiting
  • Call Hold
  • Call Transfer
  • Do Not Disturb
  • Hotline
  • Ring Groups
  • Call Groups
  • 3-way Conference
  • Automated Attendant
  • Call Detail Records(CDR)
  • Interactive Voice Response(IVR)
  • Direct inward dial(DID)
  • SMS/SMSC/USSD
  • SMS Coding/Decoding: ASCII/UCS2
  • Open API Protocol
  • PIN Code Management
  • Call Duration Limitation for SIM Card/Single Call
  • Polarity Reversal
  • Carrier Selection
  • Caller ID Restriction for Outgoing Call
  • BCCH Management

Specifications

Hardware Interfaces

1GSM/1FXS/1FXO

Ethernet Interfaces

1 LAN 10/100M Base-T RJ45
1 WAN 10/100M

LED Indicators

Power, Run, Wi-Fi, Network and Line LEDs

Wireless

Wi-Fi 2.4 GHz  802.11n

Power Supply

Input: DC 12V/1A

Power Consumption

10W (Typical)

Frequency Range, MHz

GSM: 850/900/1800/1900

Operating Temperature

0°C to +40°C

Storage Temperature

-10°C to +80°C
