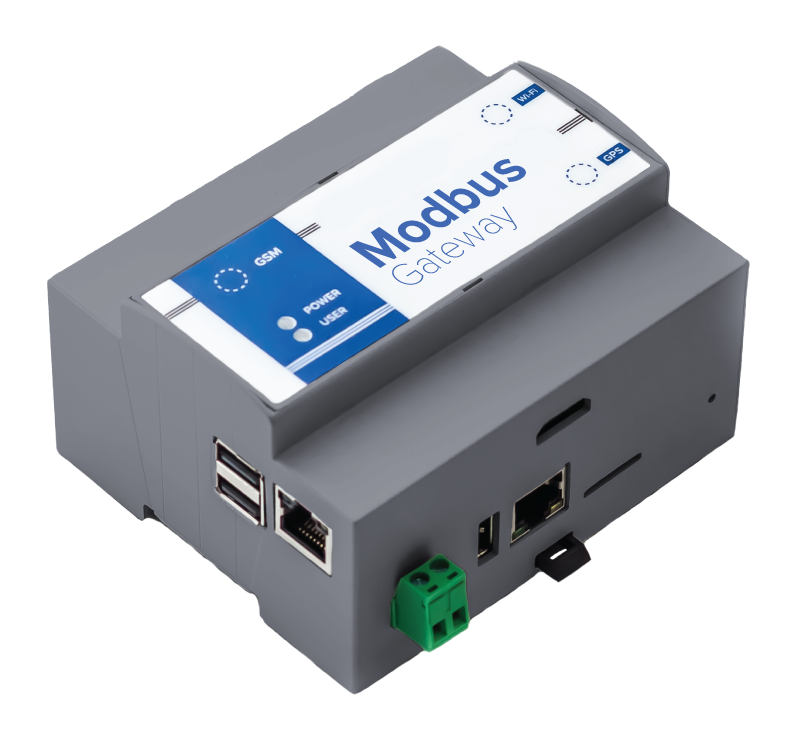

ModBus Gateways

Fully compliant with Modbus/TCP, the Modbus Skytops’s Modbus gateways offer a convenient solution for connecting devices or controllers running the Modbus serial protocol (Modbus/ASCII or Modbus/RTU) to an Ethernet.

Supports 10/100 Mbps communication speeds
Allows up to 8 clients to access field data simultaneously
Supports popular HMI software with Modbus/TCP driver or OPC server
Up to 31 Independent serial ports if configured to RS-485 serial mode
Provides auto-searching device ID Windows utility
Surge protection for RS-485 and power line
Automatic RS-485 data flow control
Easy mounting on DIN-rail or panel
Supports Modbus/ASCII, RTU Protocol to control devices.

Types of ModBus Gateways

Ultra Compact Modbus Gateway - RS232/422/485, DB9/RJ45
Ultra Compact Modbus Gateway - RS232/422/485, Terminal Block/RJ45
ISOLATED MODBUS ESS (2) RJ45 ETHERNET, RS-232/422/485
ISOLATED MODBUS ESS (1) RJ45, (1) MM LC ETH, RS-232/422/485
ISOLATED MODBUS ESS (1) RJ45, (1) SM LC ETH, RS-232/422/485

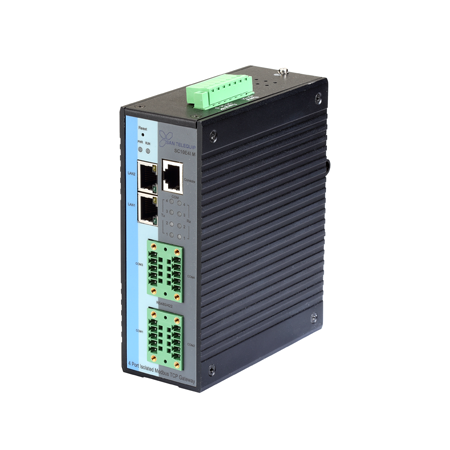

10/100 Industrial Modbus Gateway - 4 DB9 ports
10/100 Industrial Modbus Gateway – 4 Terminal Blocks
Industrial Modbus Copper Ethernet to Serial Gateway
