MT3401

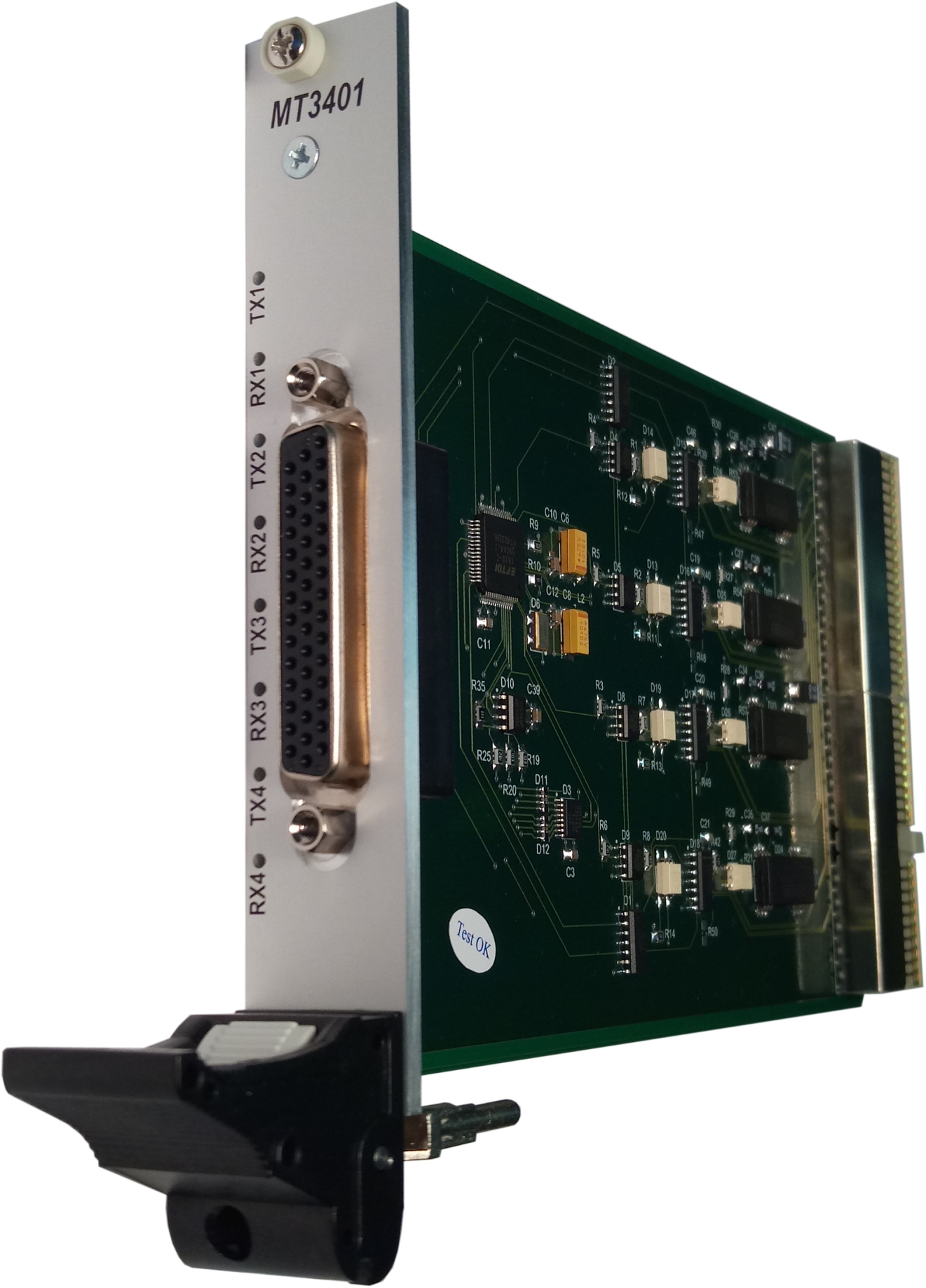

MT3401 - 3U 4 Channel RS422 / RS485. The MT3401 is a standard single-width (4HP) 3U module with four channels of high performance RS422/485-HD/FD serial interface. Each of the four channels is isolated from the system and against each other by optocoupler and on board DC/DC converter per channel.

Key features

• 4 Channel Isolated Serial Interface RS422/485
• For RS422 and RS485-FD support of RxD, TxD and GND per channel
• For RS485-HD support of DX+, DX- and GND per channel
• USB 2.0 compliant interface
• Programmable baud rates up to 10 Mbit/s
• ESD protected transceiver
• (up to +/- 15KV according to IEC 1000-4-2)
• Front panel or rear I/O

The MT3401 is a standard single-width (4HP) 3U module with four channels of high performance RS422/485-HD/FD serial interface. Each of the four channels is isolated from the system and against each other by optocoupler and on board DC/DC converter per channel.

The serial channels are accessible through a DSUB connector mounted in the front panel and rear J2 I/O. For RS422 and RS485-FD a four wire interface (RX+, RX-, TX+, TX-) plus isolated ground (GND) per channel is supported. For RS485-HD a two wire interface (DX+, DX-) plus isolated ground (GND) per channel is supported. The baud rate is individually programmable up to 10 Mbit/s for each channel.

Each receiver input and transmitter output of all channels is protected against electrostatic discharge (ESD) up to +/- 15kV according to IEC 1000-4-2.

Technical Data

I/O	RS422/485 Four channels of high performance RS422/485-HD/FD serial interface Programmable baud rates up to 10 Mbit/s ESD protected transceiver (up to +/- 15KV according to IEC 1000-4-2) DSUB connectors at front panel or J2 rear I/O USB USB to UART converter FT4232H USB 2.0 port on the J2 rear I/O connector
Miscellaneous	CompactPCI® J1 connector are assembled for power supply CompactPCI® J2  rear I/O connector for interface I/O
Electrical Specifications	Supply voltage/power consumption: +5V (-3%/+5%), 1000mA max. (500mA on channel) +3.3V (-3%/+5%), 150 mA max.
Mechanical Specifications	Dimensions: conforming to CompactPCI® specification for 3U 4HP boards Weight: 200g
Environmental Specifications	Temperature range (operation): -40..+85°C Temperature range (storage): -40..+85°C Relative humidity (operation): max. 95% non-condensing Relative humidity (storage): max. 95% non-condensing Altitude: -300m to + 3,000m Shock: 15g/11ms Bump: 10g/16ms Vibration (sinusoidal): 2g/10..200Hz Conformal coating on request
MTBF	300 000 h @ 40°C (derived from MIL-HDBK-217F)
Software Support	Windows® (Windows® XP, Windows® 7), Linux
