МТ3713 (МТ3713S, MT3708, MT3708S)

MT3713
3U CompactPCI PlusIO MIL-STD-1553

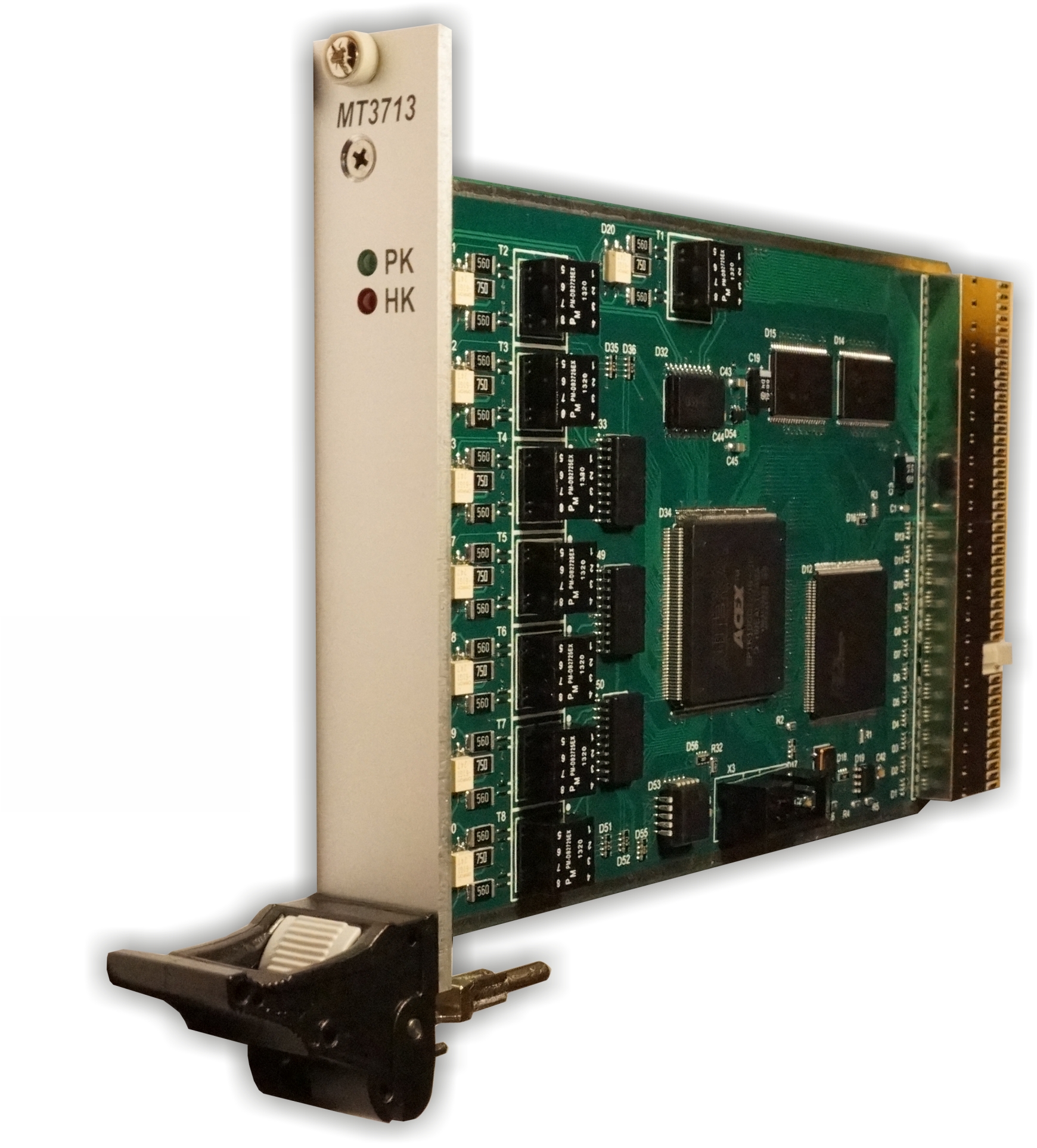

The MT3713 module is designed for providing exchange over the trunk serial interface MIL -STD-1553B through four dual redundant or eight independent channels in three modes of operation:
– in the channel controller mode, the MT3713 module makes it possible to transmit messages and control commands over the communication link. After a single preparation of data by the CPU, the MT3713 module provides the exchange of messages with network users by hardware, thus allowing the CPU to perform other tasks. The number of messages addressed arbitrarily to users is up to 32;
– in the TD (terminal device) mode, the MT3713 module makes it possible to receive messages and execute control commands. The TD address is programmed (up to 32 addresses);
– in the monitor mode, the MT3713 module allows any information transmitted over the communication link to be received and stored in the random access memory.

For the receiving and transmitting information in any mode of operation, the module stores the time of its reception and transmission fixed by the built-in timer of the device. The timer has a programmable duration and counting period, as well as a means for shaping the CPU interrupts.

Key features

• Four Dual Redundant MIL-STD-1553A&B
• Programmable mode of operation
• Direct or transformer coupled interface
• Front panel or rear I/O.

Technical Data

Compact PCI Interface	PICMG 2.0 Rev. 3.0 compliant, 32 Bit address/data/33MHz
I/O	Four Dual Redundant or eight independence MIL-STD-1553A&B Programmable mode of operation
Memory	RAM Controller mode: 16 KB Terminal mode: 8 KB Monitor mode: 4,5 KB
Miscellaneous	CompactPCI® J2 are assembled for rear I/O  Front Panel Connector: D-Sub 44-pin
Electrical Specifications	Supply voltage/power consumption: +5V (-3%/+5%), 1000mA max. (500mA on channel) +3.3V (-3%/+5%), 150 mA max. TRANSMITTER Output Voltage 35 ohm load, Direct Coupled: 7V min, 8V max 35 ohm load , Transformer coupled: 20V min, 27V max Differential resistance Input: 20 Kohm min. Output: 10 Kohm min. Differential  capacitance Input: 5 pF max. Output: 15 pF max.
Mechanical Specifications	Dimensions: conforming to CompactPCI® specification for 3U 4HP boards Weight: 200g
Environmental Specifications	Temperature range (operation): -40..+85°C Temperature range (storage): -40..+85°C Relative humidity (operation): max. 95% non-condensing Relative humidity (storage): max. 95% non-condensing Altitude: -300m to + 3,000m Shock: 15g/11ms Bump: 10g/16ms Vibration (sinusoidal): 2g/10..200Hz Conformal coating on request
MTBF	300 000 h @ 40°C (derived from MIL-HDBK-217F)
Software Support	Windows® (Windows® XP, Windows® 7), Linux
