MT3507

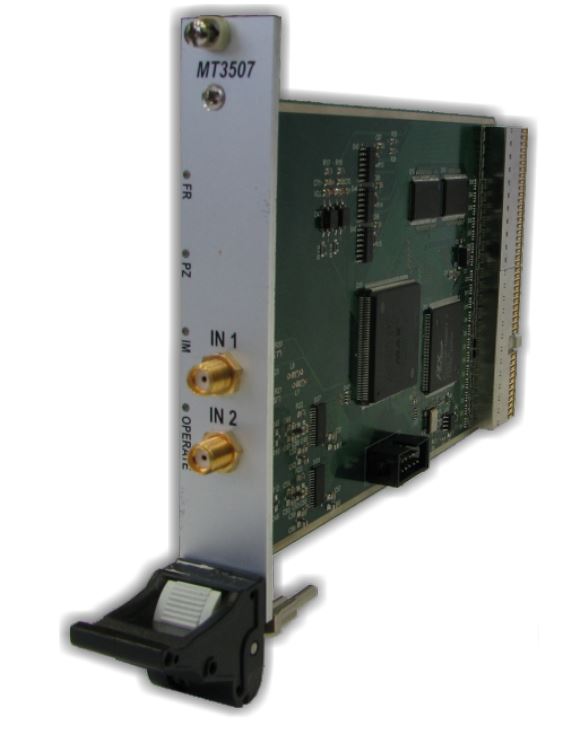

The MT3507 is a standard single-width (4HP) 32 bit 3U CompactPCI®  module and provides 2 channels of 12 bit analog inputs/outputs. It supports immediate and simultaneous load. The sequencer allows update of enabled channels periodically and the sequence timer range extends from 100us to 6.5s. The programmable input/output voltage range is 0..5V, 0...10V, 5V, 10V selectable by software. Each MT3507 is calibrated factory. The calibration information is stored in the Identification-PROM unique of  each module. USB 2.0 are placed on the board in addition. The MT3507 equi pped wi th SRAM for buffering data.

Key features:

• CompactPCI®  PICMG 2.0 Rev. 3.0
• 2 analog input/output channels
• 44 digital input/output channels
• Resolution 12-bit Isolation 2 kV to system
• USB 2.0
• SRAM 1Mb.

Technical Data

Compact PCI Interface	PICMG 2.0 Rev. 3.0 compliant, 32 Bit address/data/33MHz
Analog Inputs/Outputs	Number of channels: 2 Resolutions: 12-bit Maximum frequency of conversion: 21 MHz Basic Accuracy (INL): +/- 1 LSB Input Voltage Range: 0..5V, 0...10V, 5V, 10V Input Current Range: 0.. 20 mA Isolation: 2 kV to system
Digital Inputs/Outputs	Number of channels: 44 Input Voltage: +3.3V
Memory	SRAM 1 Mb
Miscellaneous	CompactPCIТ®  J2 are assembled for rear I/O
USB Interface	USB 2.0 port on rear I/O connector
Electrical Specifications	Supply voltage/power consumption: +5V (-3%/+5%), 100mA max. +3.3V (-3%/+5%), 300 mA max.
Mechanical Specifications	Dimensions: conforming to CompactPCI specification for 3U boards Weight: 200 g
Environmental Specifications	Temperature range (operation): -40...+85°C Temperature range (storage): -40...+85°C Relative humidity (operation): max. 95% non-condensing Relative humidity (storage): max. 95% non-condensing Altitude: -300m to + 3,000m Shock: 15g/11ms Bump: 10g/16ms  Vibration (sinusoidal): 2g/10..200Hz Conformal coating on request
MTBF	300 000 h @ 40°C (derived from MIL-HDBK-217F)
Software Support	Windows® (Windows® XP, Windows® 7), Linux
